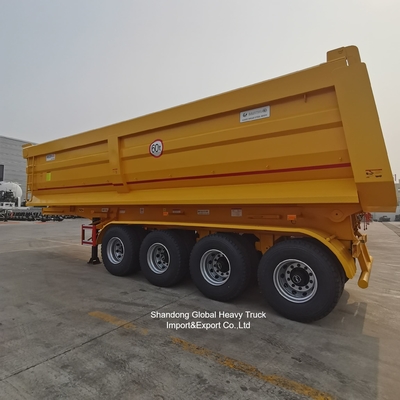

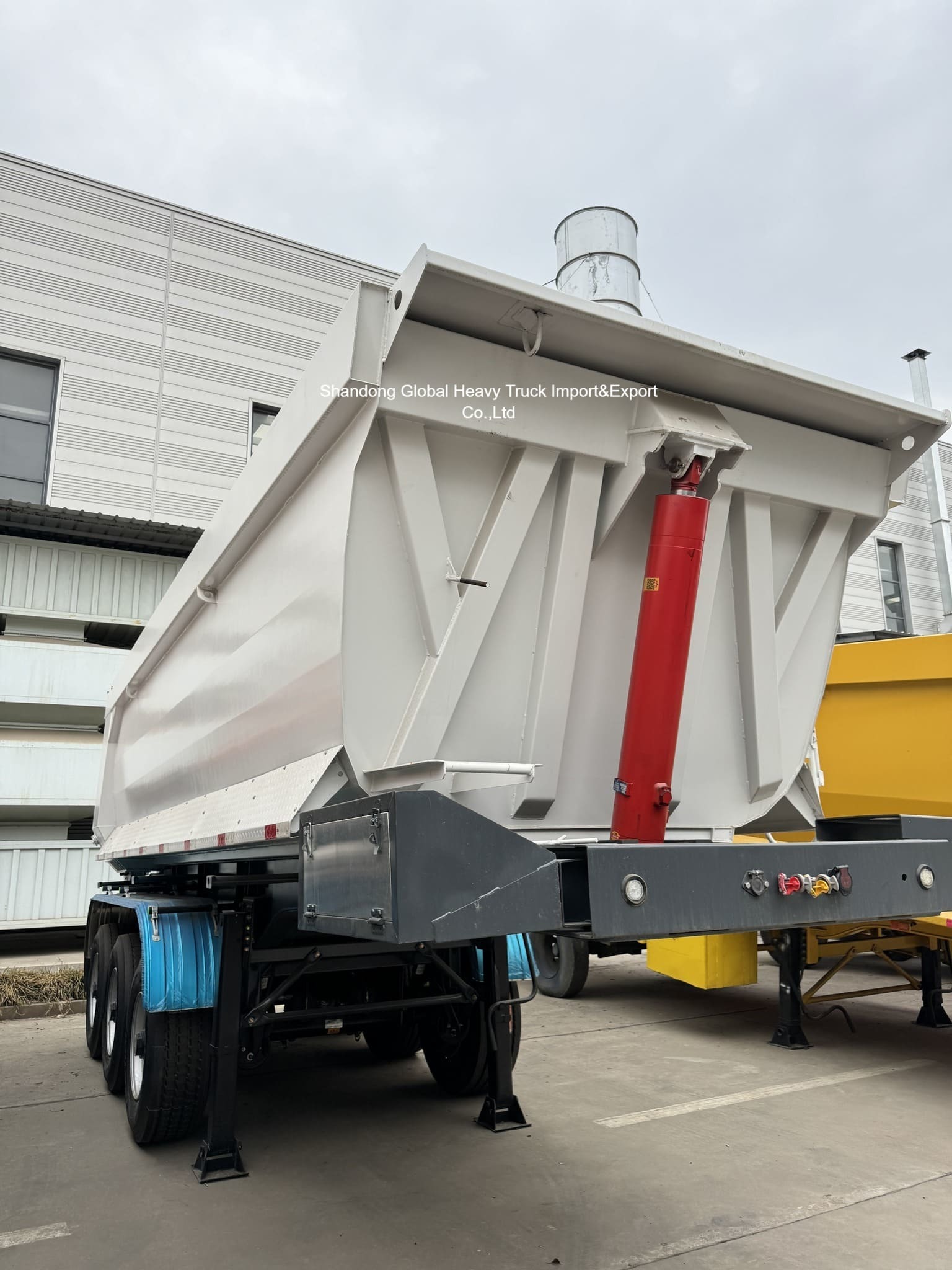

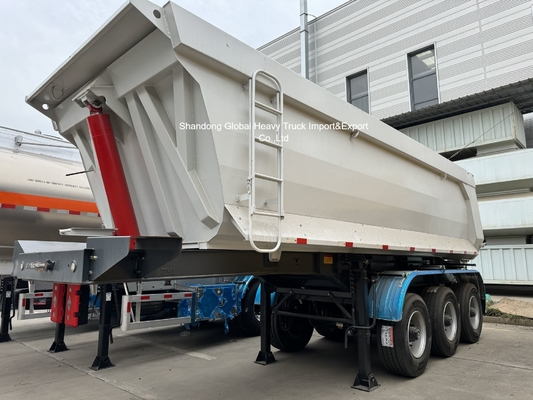

3 Axles / 4 Axles 80 Tons Hydraulic Side Box Tipper Dump Semi Trailer
Strong Power, High Efficiency, Reliable Performance for African Transport
The 80 Tons Hydraulic Side Tipper Semi Trailer is a heavy-duty solution designed for large-scale transportation of sand, stones, minerals, and construction materials. Built with a high-strength chassis and powerful hydraulic system, this trailer delivers fast unloading, excellent stability, and long-lasting performance under demanding Nigerian road conditions. It is widely used in mining, infrastructure, and bulk material logistics across Lagos, Abuja, and Kano.
Main Technical Specifications
- Model: 3 Axle / 4 Axle Hydraulic Side Tipper Semi Trailer
- Loading Capacity: 60-80 Tons
- Body Volume: 35-60 CBM
- Material: Q345B or T700 High Strength Carbon Steel
- Axles: FUWA or BPW Brand, 13T / 16T Optional
- Tires: 12R22.5 or 315/80R22.5 (12 / 16 pcs)
- Suspension: Heavy-Duty Mechanical or Air Suspension
- Hydraulic System: HYVA Brand Hydraulic Cylinder (Front or Side Lifting Type)
- Landing Gear: JOST 28T Two-Speed
- King Pin: 50mm / 90mm Bolted Type
- Braking System: WABCO Air Control System
- Painting: Sandblasted, Two Primer Layers + High-Gloss Finish
- Optional: Side Door Opening, Ladder, Spare Tire Carrier
Product Advantages
- Powerful Hydraulic Lifting System: HYVA cylinder ensures quick and stable unloading even with heavy materials.
- Reinforced Body Structure: Welded high-tensile steel frame resists torsion and impact during rough road operation.
- High Payload Efficiency: Carries up to 80 tons while maintaining structural integrity.
- Low Maintenance Design: Simple hydraulic layout and easily accessible components.
- Anti-Rust Treatment: Full chassis sandblasting and polyurethane coating ensure corrosion resistance and long service life.
- Versatile Application: Suitable for transporting aggregates, coal, and construction debris in mining and civil projects.
- Adapted for Nigeria: Strong suspension and high ground clearance for rough terrain and long-distance transport.
Customer Feedback
"We use these trailers for sand and gravel transport. The side tipping system works perfectly and saves us a lot of unloading time. Strong chassis, no bending issues."
Mr. Hassan - Lagos
"The trailer quality is impressive. HYVA hydraulic system performs well, even with 70-ton loads. Excellent product and reliable supplier."
Mr. Musa - Abuja
"Delivered as promised. The welding and paint quality are very good, and the trailer runs smoothly even on tough roads."
Mr. Adewale - Kano
Frequently Asked Questions
Q1: What materials can be transported with this side tipper trailer?
A1: It's suitable for transporting sand, stone, coal, ore, construction debris, and similar bulk materials.
Q2: How does the side tipping mechanism work?
A2: The trailer uses a heavy-duty hydraulic system (HYVA brand) to lift the box from one side, enabling fast and safe unloading.
Q3: What's the difference between 3-axle and 4-axle models?
A3: 3-axle trailers typically carry up to 60 tons, while 4-axle versions support up to 80 tons for higher-volume applications.
Q4: What's the body material and thickness?
A4: The box is made of Q345B steel, 6mm floor + 4mm side wall (customizable up to 10mm for mining use).
Q5: Can the trailer be customized?
A5: Yes, we can customize axle brand, color, volume, and logo according to your requirements.
Q6: How long does it take to produce?
A6: Usually 20-30 working days depending on order quantity and customization.
Q7: How is it shipped to Nigeria?
A7: By bulk vessel or RO-RO shipment to Lagos, Tin Can, or Onne port.
Q8: What's the warranty policy?
A8: One-year warranty for major components and lifetime online technical support.
