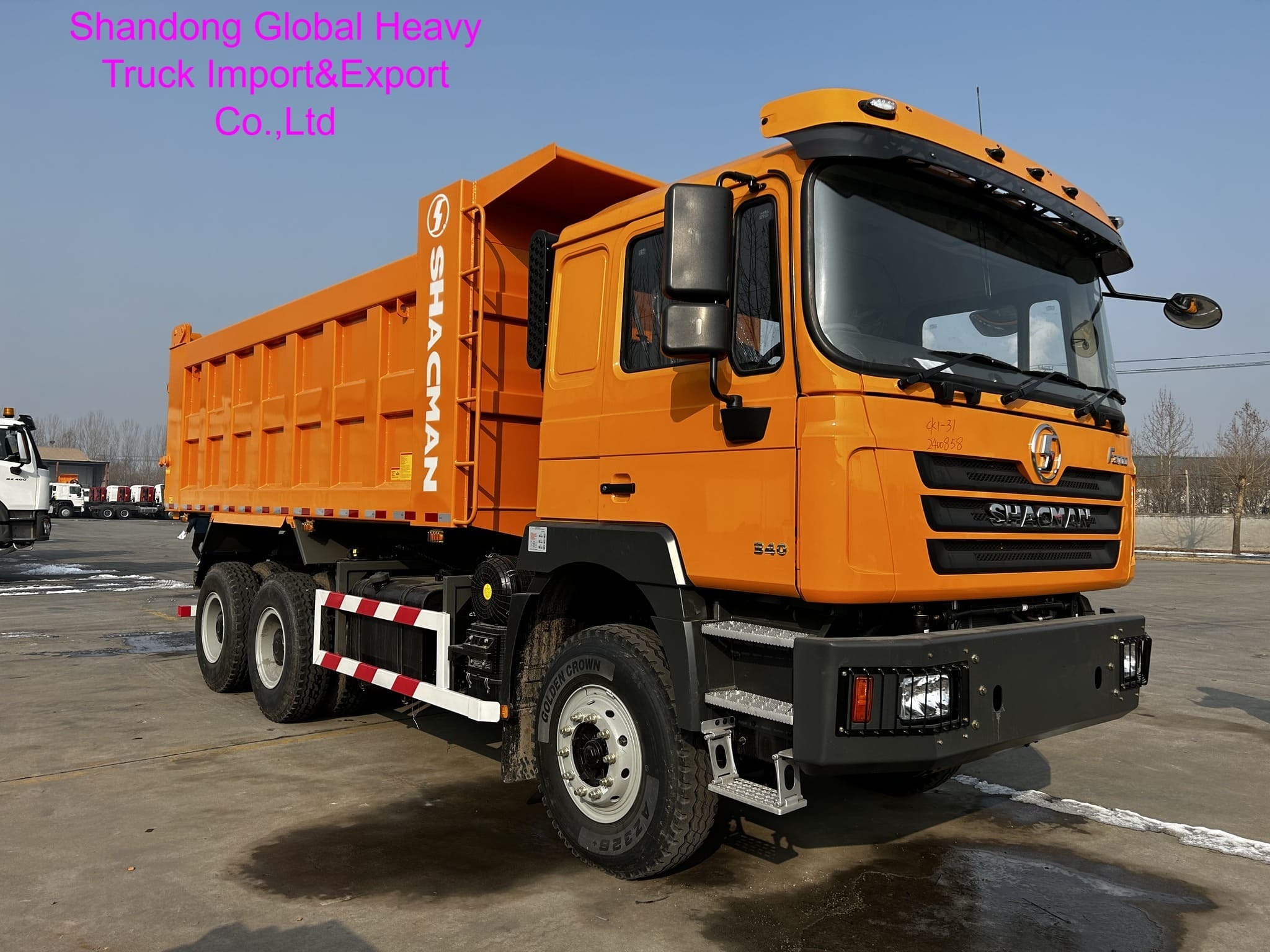

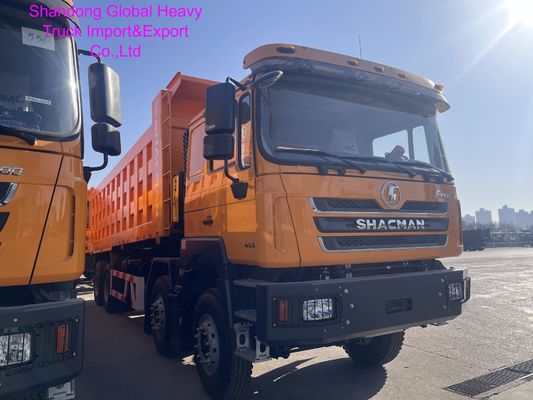

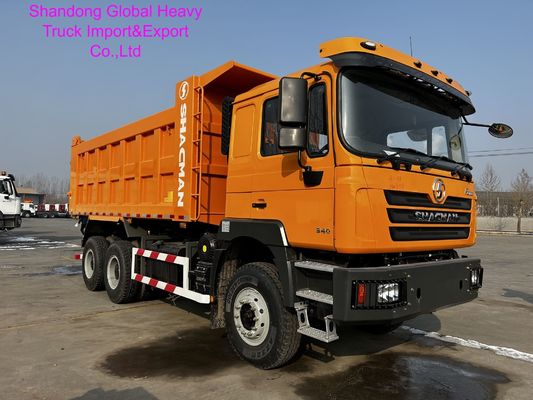

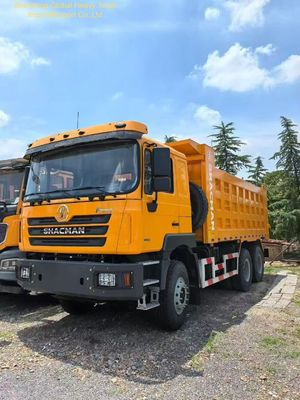

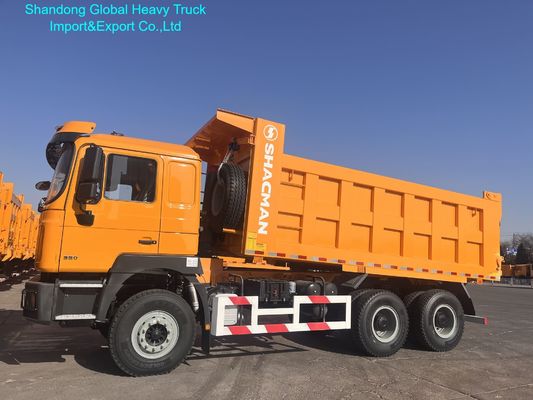

Shacman F3000 380HP 6X4 10 Wheels Heavy Duty Dump Truck for Mining and Construction

Shacman F3000 380HP 6X4 10 Wheels Heavy Duty Dump Truck for Mining and Construction

  • Shacman F3000 380HP 6X4 10 Wheels Heavy Duty Dump Truck for Mining and Construction
  • Shacman F3000 380HP 6X4 10 Wheels Heavy Duty Dump Truck for Mining and Construction
  • Shacman F3000 380HP 6X4 10 Wheels Heavy Duty Dump Truck for Mining and Construction
  • Shacman F3000 380HP 6X4 10 Wheels Heavy Duty Dump Truck for Mining and Construction
Shacman F3000 380HP 6X4 10 Wheels Heavy Duty Dump Truck for Mining and Construction
পণ্যের বিবরণ:
উৎপত্তি স্থল: চীন
পরিচিতিমুলক নাম: shacman
সাক্ষ্যদান: iso,
মডেল নম্বার: F3000
প্রদান:
ন্যূনতম চাহিদার পরিমাণ: 1 পিসি
মূল্য: আলোচনাযোগ্য
প্যাকেজিং বিবরণ: নগ্ন
ডেলিভারি সময়: 40 কর্মী দিন
পরিশোধের শর্ত: এল/সি, টি/টি
যোগানের ক্ষমতা: 500 ইউনিট/মাস
যোগাযোগ
বিস্তারিত পণ্যের বর্ণনা
মডেল নং: শ্যাকম্যান এফ 3000 6*4 ডাম্প ট্রাক অশ্বশক্তি: 380hp
স্টিয়ারিং: বাম/ডান হাত চালনা ড্রাইভ হুইল: ৬*৪
ট্র্যাকশনের ধরন: জেডএফ এয়ার কন্ডিশনার: সঙ্গে
শর্ত: নতুন ড্রাইভ সিট: বায়ু সাসপেনশন আসন
বিশেষভাবে তুলে ধরা:

380HP Heavy Duty Dump Truck

,

6X4 Heavy Duty Dump Truck

,

10 Wheels Dump Truck

Shacman F3000 RHD 6X4 380HP 8X4 420HP Cargo Tipper Diesel 10 Wheels Heavy Duty Dump Truck
Product Overview

The SHACMAN F3000 Dump Truck is engineered for demanding operations in construction, mining, and long-haul transport. Featuring a robust 400HP powertrain, reinforced structure, and adaptable loading capacity, this truck delivers exceptional performance for heavy-duty applications.

Technical Specifications
  • Brand: SHACMAN
  • Model: F3000 Dump Truck
  • Drive Type: 6×4
  • Engine: Weichai WP10 / 400 HP, Euro II/III standard
  • Transmission: Fast 10- or 12-speed manual gearbox
  • Clutch: Single dry plate, 430 mm
  • Axle: 7.5T front, 16T rear, hub reduction optional
  • Suspension: Reinforced multi-leaf spring system
  • Frame: Double-layer high-strength steel, 8+8+8 mm
  • Steering: Hydraulic power steering (ZF technology)
  • Brakes: Dual circuit air brake system, ABS optional
  • Fuel Tank: 400 L
Cargo Body
  • Body Type: U-shape or square box
  • Box Dimension: 5600-5800 × 2300 × 1500 mm (customizable)
  • Material: High-strength steel Q345 / NM450
  • Thickness: 8-10 mm bottom, 6-8 mm sides
  • Payload: 25-30 tons
  • Hydraulic System: HYVA lifting cylinder, fast unloading
Dimensions & Performance
  • Overall Dimension: 8614 × 2490 × 3450 mm
  • Wheelbase: 3775 + 1400 mm
  • Curb Weight: 12,500-13,000 kg
  • GVW: 25,000-30,000 kg
  • Top Speed: 80-90 km/h
Key Advantages
  • Robust chassis designed for both off-road and urban conditions
  • Exceptional payload capacity for bulk material transport
  • Reliable engine with superior climbing ability
  • Ideal for road construction, quarrying, and logistics operations
  • Global spare parts availability and comprehensive after-sales support
Frequently Asked Questions
What is the average fuel consumption?

Approximately 36-38 liters per 100 km depending on road conditions and load.

Can the truck body be customized?

Yes, cargo box size and thickness can be modified according to project requirements.

What warranty is provided?

Standard warranty: 1 year or 100,000 km.

Is it suitable for mining operations?

Yes, reinforced axles and durable box material make it suitable for heavy-duty mining tasks.

How long is the delivery time?

Typically 30-40 days after order confirmation.
